Project snapshot: New residential construction, Black Mountain, NC · 5 steel I-beams, 22–27 ft each · ~1,500 lbs per beam · Two truck positions · One creative solution to a seemingly insurmountable obstacle.
Every crane lift we take on in the mountains of Western North Carolina starts the same way: with a phone call, a map, and a careful look at what’s actually possible on site. A recent new-construction project in Black Mountain was a good reminder of why we spend so much time planning before a single beam leaves the ground — and why creative problem-solving is part of the job description around here.
Early Planning and the Site Visit
The homeowner contacted Up! Up! Lifting well before their walls were framed, which is exactly the right call. Steel ceiling beams are a critical-path item on a new build, and crane availability matters. Early booking also gave us time to walk the property before committing to a work date.
On any site visit, we’re answering two questions at once. First, can our truck-mounted knuckleboom crane reach and lift what the job requires? Second — and this one is specific to our region — can our crane truck physically get to the site? In the mountains around Asheville, narrow roads, tight switchbacks, and steep grades can turn a straightforward lift into a non-starter before we ever set an outrigger.
We walked the incoming road, studied the driveway, confirmed the heights and reaches we’d need at each beam location, and greenlit the project. But “greenlit” doesn’t mean “obstacle-free.” We knew the climb in would test our low crawler gear, and we knew one of the five beam placements would push us right to the edge of our reach envelope.
The Beams, the Numbers, and the Plan
Five steel I-beams were staged on site, ranging from 22 to 27 feet long and weighing up to 1,500 lbs each. They’d be placed across two structural areas: two beams spanning the garage, and three across the home’s great room. That split dictated two separate truck positions for the day.
For the garage beams, we were working with a 31-foot side reach — two feet from the truck centerline plus three feet for our extended outriggers, netting us the usable reach we needed. The two beams had to land 25 feet and 15 feet from the edge of the structure. On the longer of those, we had about one foot to spare. Tight, but comfortably within spec. Our max full-reach capacity is 1,800 lbs, so at ~1,500 lbs per beam the load sat inside the envelope.
Rigging and Lift Execution
With the stack of beams within 20 feet of our first lift position, we set up, stabilized, chocked the wheels, and ran our lift checklist. Before the first pick, our crane operator briefed the construction crew on hand signals, exclusion zones, and how the operation would proceed. A 1,500-lb beam moving overhead is not the moment for miscommunication.

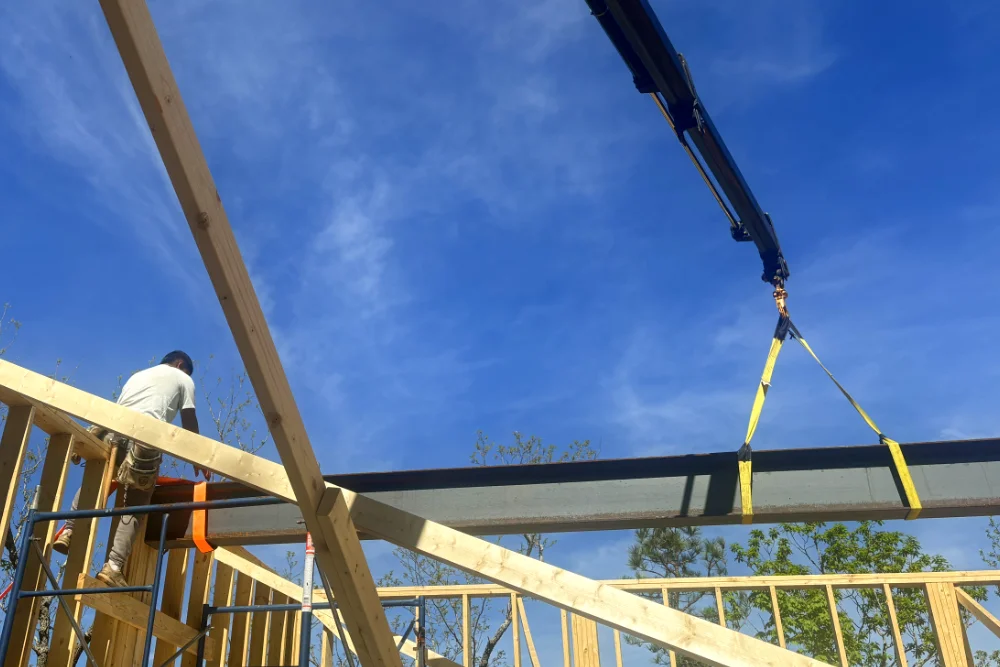

Each beam was rigged with two 13,000-lb-rated web slings, positioned 16 inches off-center on opposing sides. That geometry gave us two advantages at once: redundant, over-rated sling capacity for safety, and a two-point off-center configuration that naturally stabilized the beam during rotation. Conditions helped us too — minimal wind, and a low-profile beam with limited surface area — so we were able to manage heading and sway with two tag lines (one on each end).

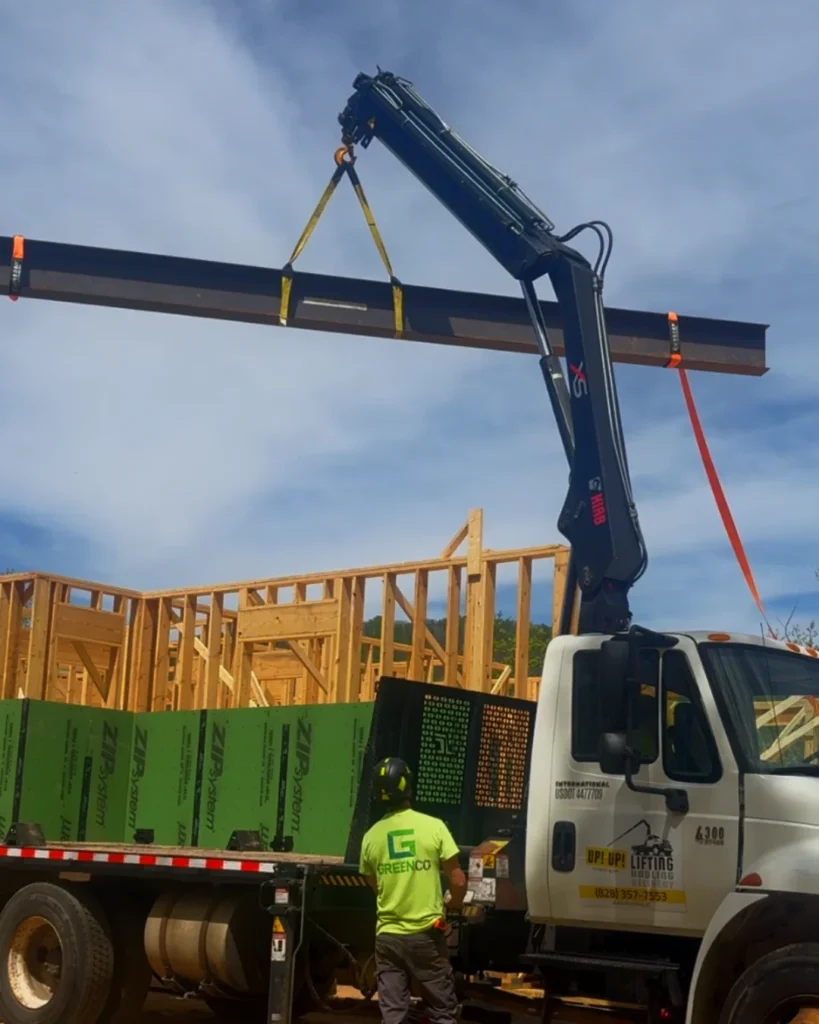

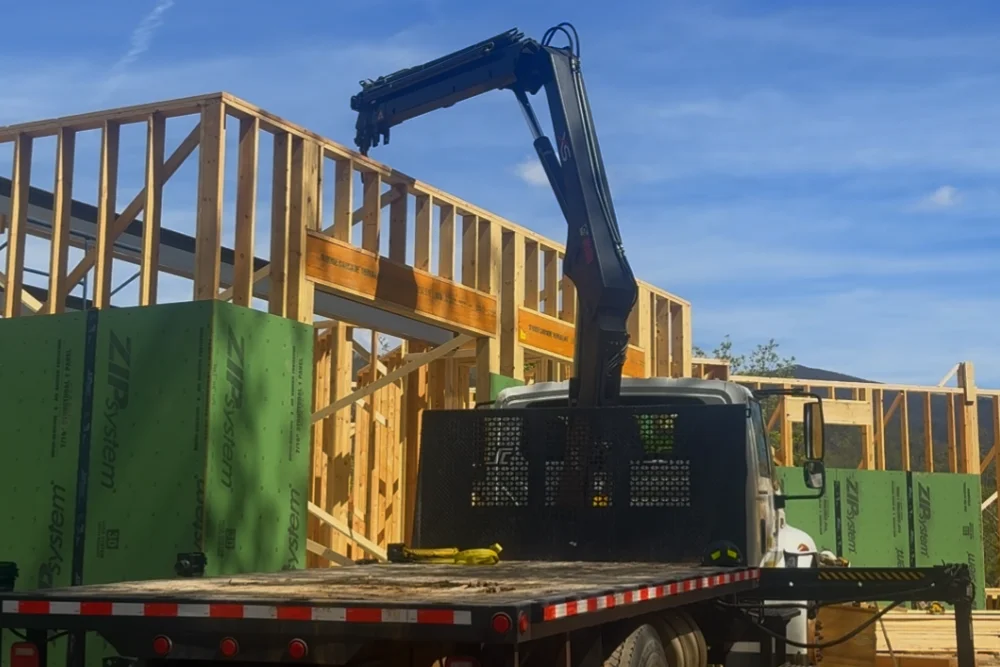

From there the sequence was clean: pick from the stack on one side of the truck, rotate around and up over the wall line, then lower into place. One tag line went over the wall to a crew member inside the structure; the other stayed with a crew member outside. Each beam came down under control from both sides and was secured before the slings came off.

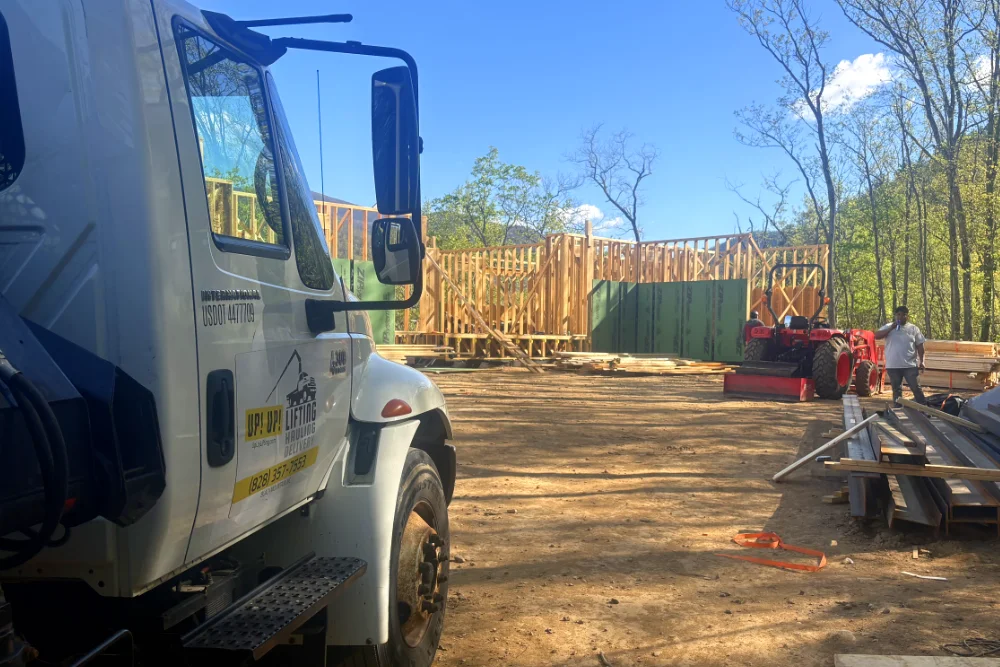

With both garage beams set, we repositioned next to the great room for the final three. By that point we were beyond crane-reach of the original beam stack, so a tractor with bucket forks shuttled each remaining beam over to us as we needed it — a good example of how a well-coordinated site crew can save real time on a lift day.
The Out-of-Reach Beam: A Creative Solve
The most interesting part of this job was a beam that sat beyond our crane’s reach.
It was a 22-foot beam that needed to span two opposing 10-foot walls, with its final resting point roughly 30 feet from the truck. Our maximum reach at that configuration was 25 feet. The gap had been flagged during the site inspection, and we’d already sketched out a few possible approaches with the homeowner. We agreed to attempt the placement on lift day — with the explicit understanding that we’d only complete it if it could be done safely.

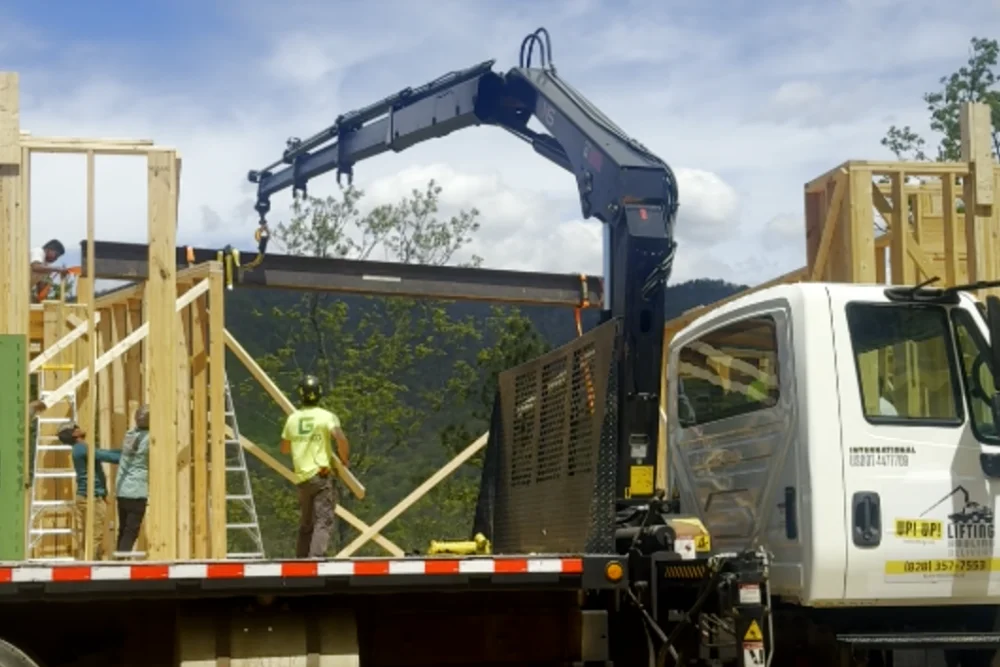

Here’s how it came together. With the boom fully extended and the beam at working height, we swiveled the beam on-center so that one end rested at its permanent position on the first wall. The other end now sat about 12 feet short of its final seat on the opposing wall. We framed out a temporary, braced stub wall inside the gap to catch that loose end, lowered the beam onto the temporary support, then — with the slings loosened but still attached as a failsafe — slid the beam along the temporary wall until it came to rest in its permanent location. The two final great-room beams went in conventionally after that, and the job wrapped on schedule, on plan, and without incident.
What This Kind of Crane Truck Job Takes in Western North Carolina
This project wasn’t successful because of one crane or one operator. It worked because of early planning, an honest site visit, and tight collaboration between the homeowner, the building crew, and our team. We’re grateful to the homeowner for trusting us to explore a creative solution when the straight-line path wasn’t there.
And for what it’s worth: out-of-reach scenarios like this aren’t rare in the Blue Ridge. Bigger cranes with longer reach usually ride on bigger trucks — trucks that can’t clear the switchbacks and grades that a Black Mountain mountaintop build often requires. Picking the right rig for the access, and then finding creative ways to stretch its capabilities on site, is a lot of what we do.
If you’re planning a new build, addition, or major project in the Asheville area, greater Western North Carolina, or adjacent communities in upstate SC, north GA, or east TN, we can help with more than beam placement. Our crane truck also handles building materials delivery, lumber drops to remote mountain job sites, block placement for retaining-wall construction, and specialty residential work like mini-split and HVAC unit installations.
Got a project with a tricky lift, a tight access road, or both? Get in touch with Up! Up! Lifting early in your planning — the more lead time we have, the more options we have.
